What Is CNC Machining?
CNC machining (Computer Numerical Control machining) is a subtractive manufacturing process in which pre-programmed computer software controls machine tools to remove material from a solid workpiece. CNC machining is widely used to produce high-precision parts with consistent quality, repeatability, and excellent surface finishes. Compared with manual machining, CNC machining offers:
Our CNC Machining services
Dongguan Chengyang uses 3-axis, 4-axis and 5-axis CNC milling machines to easily process parts of varying difficulty. At the same time, with the help of CNC lathes, turning centers and turning-milling compound machines, we can process a variety of different plastic, metal and rubber parts.

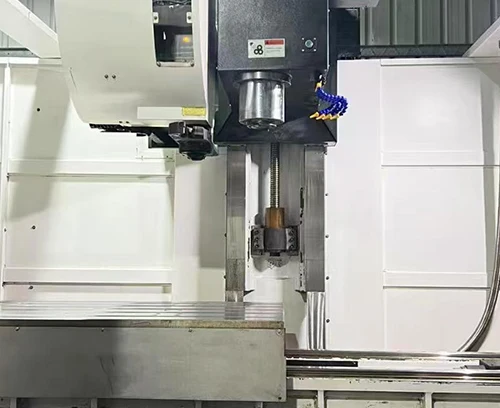

CNC Milling
From fundamental 3-axis machining to complex 5-axis projects, our precision CNC milling brings your designs to life with exceptional accuracy and craftsmanship.

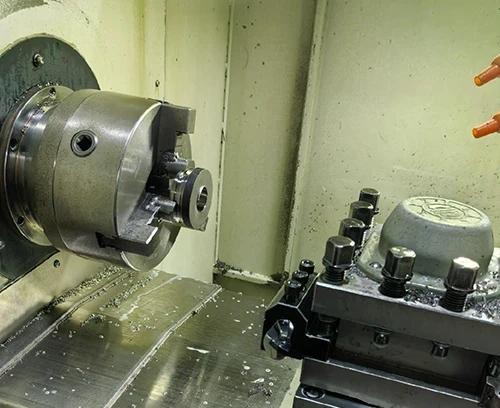

CNC Turnning
Ensure the production of highly accurate turned parts, no matter how complex the design. Get durable parts featuring flats, radial and axial holes, slots, and grooves.

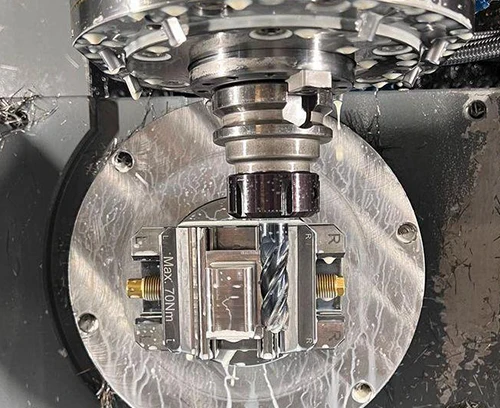

5 Axis CNC Milling
Achieve high precision and exceptional accuracy with our 5-axis CNC machining services, capable of producing intricate parts with extremely complex geometries.

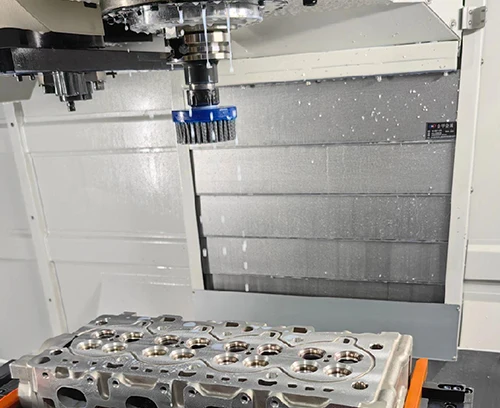

Precision Machining
Precision machining utilizes advanced CNC technology to manufacture highly accurate parts essential for industries such as aerospace, medical devices, and electronics.
Capabilities
Maximum Dimensions
2000mm x 1500mm x 800mm or 78.7 x 59 x 31.5 inches.
Minimum Dimensions
Metal: 0.5mm or 0.02 in, Plastic: 1.0mm or 0.04 in
Support Threading
Prefer Metric Threads, Also Support UNC and UNF threads.
Wall Thickness
Generally, a workable minimum wall thickness is 0.5mm for metals and 1.0mm for plastics.
Material Available
Metals: Aluminum, Copper, Brass, Bronze, Stainless Steel, Carbon Steel, Steel Alloy, Titanium, and plastic, etc .
Tolerances
Dimension: Depends on the size and material, generally +/- 0.01mm or 0.0004 inches
Metal Materials
We offer instant quotes for over 100 metals and help compare processing material costs.
Aluminum
Aluminum, valued for its combination of lightness and strength, offers increased durability without the addition of unnecessary weight. Its remarkable ductility allows for detailed shaping, making it ideal for complex designs.
Carbon Steel
Carbon steel is a type of steel with excellent mechanical properties and a wide range of applications. Through reasonable heat treatment processes and corrosion prevention measures, its performance can be further enhanced and its service life extended.
Stainless Steel
Stainless steel, renowned for its enduring quality and resistance to stains, ensures long-lasting use and maintains its appearance, even in harsh conditions.
Tool Steel
Tool Steel, or tool steel, is a type of steel primarily used for manufacturing cutting tools, gauges, molds, and wear-resistant tools. It is characterized by its high hardness, ability to maintain hardness and red-hardness at high temperatures, high wear resistance, and adequate toughness.
Brass
Long-lasting, unique gold hue, robust, readily workable for intricate parts.
Copper
The advantages of copper are unmistakable: it possesses unparalleled electrical conductivity, high thermal efficiency, and natural corrosion resistance, ensuring long-lasting durability and superior performance across various manufacturing applications.
Titanium
High conductivity for both heat and electricity, malleable, resistant to corrosion, ideal for complex shaping and bending processes.
Surface Finishes
Our experienced professionals specialize in product surface treatment.
| Name | Description | Materials | Color | Texture | More |
|---|---|---|---|---|---|
Brushing |
Brushing is a surface treatment that grinds the workpiece to create decorative lines, enhancing its aesthetic appeal. | Aluminum, Brass, Stainless Steel, Steel, ABS,etc | N/A | Satin | |
Sand Blast |
Sandblasting uses high-speed sand flow to clean and roughen surfaces, ensuring desired cleanliness and texture. | All Metal Materials, Plastic | N/A | Matte | |
Tumbling |
Tumbling smooths surfaces, deburrs edges, and enhances uniformity by rotating materials with abrasive media. | All Materials | N/A | Smooth, Matte | |
Polishing |
Polishing removes imperfections, smooths surfaces, and enhances appearance, creating a shiny, reflective finish. | All Materials | N/A | Smooth | |
Anodizing |
Anodizing enhances aluminum by adding a protective layer for improved corrosion resistance, hardness, and appearance. | Aluminum, Titanium | Clear, Yellow, Green, Blue, Black, etc |
Smooth, matte finish. | |
Painting |
Mount the product on a rotating bracket, secure it on the assembly line, and apply paint evenly. This improves texture but may increase scratch susceptibility. | All Materials | Clear, Yellow, Green, Blue, Black, Multiple | Gloss, semi-gloss, flat, metallic, textured | |
Black Oxide |
Black oxide forms a protective film that enhances corrosion resistance, appearance, and reduces light reflection, ideal for steel and stainless steel. | Steel, Stainless Steel | Black | Smooth, matte | |
Electroplating |
Electroplating enhances function, aesthetics, and corrosion resistance, widely used in industries like automotive for chrome-plated steel parts. | Aluminum, Steel, Stainless Steel | Gold, Silver, Nickel, Copper, Brass, Zinc, Chrome | Smooth, glossy finish | |
Powder Coating |
Powder coating electrostatically applies dry powder to metal, then cures it with heat or UV light for a durable, attractive finish. | Aluminum, Stainless Steel, Steel,etc | Custom | Gloss, matte or semi-gloss | |
Alodine |
An alodine finish forms a thin protective coating on aluminum, preventing corrosion and serving as a paint primer. | Aluminum, Stainess Steel | Clear, Gold | As machined | |
Passivation |
Passivation improves stainless steel's corrosion resistance by immersing it in an acid solution, removing contaminants, and forming a protective oxide layer. | Stainess Steel | N/A | Matte | |
Electroless Plating |
Electroless plating deposits metal onto a substrate through a chemical reaction, creating a uniform, adherent coating without the need for an external electrical current. | Metal, Plastic | Gold, Silver, Nickel, Copper, Brass, Zinc, Chrome | Smooth, glossy finish |
CNC Machining Tolerances and Quality Control
We maintain strict quality standards throughout the CNC machining process. Typical tolerances range from ±0.01 mm to ±0.05 mm, depending on material, geometry, and process requirements.
Incoming material inspection
In-process inspection
Final dimensional inspection
Calibrated measuring equipment
